LOAD CENTER MCB 100A 30/60
Descriptors
Category
Load Centers
GO Schedule
RT
Grouping
Single Phase - USA
Specifications
# Branch Circuit <250A
30
1" Space
30
1/2" Space
0
Amperage
100 A
Circuit Breaker Style
Plug-On Neutral
Door
Yes
Enclosure
Indoor
Enclosure Type
Indoor, Combination
Factory Installed Ground Kit
No
Feed
Either
Input/Output Voltage
120/240V ac
Interrupt Rating
22kAIC
Interrupting Capacity Rating
22kAIC
Load Center Type
P-Series (PON)
Meter Socket Options: 200 Amp Main Breaker Installed
No
Meter Socket Options: High Amp Mode
None
NEMA Rating
NEMA 1
No of Circuits
60
Phase
1 Phase
Service & Voltage
1 Phase, 3 Wire, 120/240V ac
Wires
3 Wire

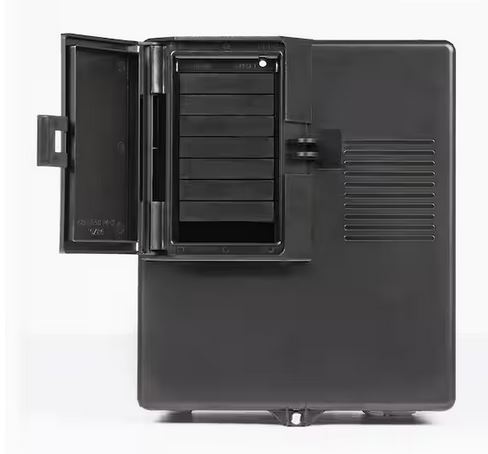

CURCUIT BREAKER MLO 125A 4/8
Descriptors
Category
0
Load Centers
GO Schedule
0
RA
Grouping
0
Single Phase - USA
Specifications
1" Space
0
4
1/2" Space
0
8
Amperage
0
125 A
Circuit Breaker Style
0
Plug-In
Device type
0
Main Lug
Door
0
No
Enclosure
0
Indoor
Enclosure Type
0
Indoor, Combination
Factory Installed Ground Kit
0
No
Feed
0
Either
Input/Output Voltage
0
120/240V ac
Interrupting Capacity Rating
0
10
Load Center Type
0
Standard
NEMA Rating
0
NEMA 1
Phase
0
1 Phase
Service & Voltage
0
1 Phase, 3 Wire, 120/240V ac
Wires
0
3 Wire
CIRCUIT PANEL INDOOR 200A 40CIR
GE PowerMark Gold(TM) Industrial Solutions Convertible Main Lug Loadcenter, 1-Phase Standard, Series: TLM, 120/240 VAC, 200 A, 1 Pole, 22 kA Interrupt, 40 Circuits, THQL Breaker, 3-Wire Wiring Configuration, 40 Spaces, 6 AWG to 250 kcmil Wire, Flush Mounting, NEMA 1 Enclosure, NEMA 13 Enclosure Box, 39-3/16 in H x 14 in W x 3-3/4 in D Dimensions
PowerMark(R) Gold(TM) loadcenters lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. At the same time, they deliver obvious and significant advances in design, function and quality.

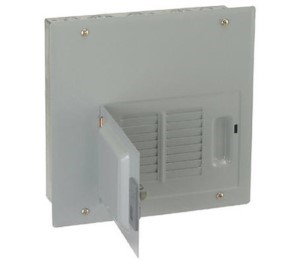

LOAD CENTER MAIN LUG INDR 125A
LOADCENTER MAIN LUG INDR 125A
Indoor flush or surface mount with door
Box is significantly smaller and lighter while maintaining optimum wire-bending space
Side mounted main breaker allows top or bottom feed
Sturdy copper bus and galvanized box increase durability and reliability tinplated for corrosion resistance
Minimum 100% neutral terminations
All neutral holes are rated for 14 - 4 AWG wire
Extruded neutrals are easier to wire, reducing installation time and cost
Combination slotted/Robertson screws speed wiring
Powermark gold load centers lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. at the same time, they deliver obvious and significant advances in design, function and quality.
